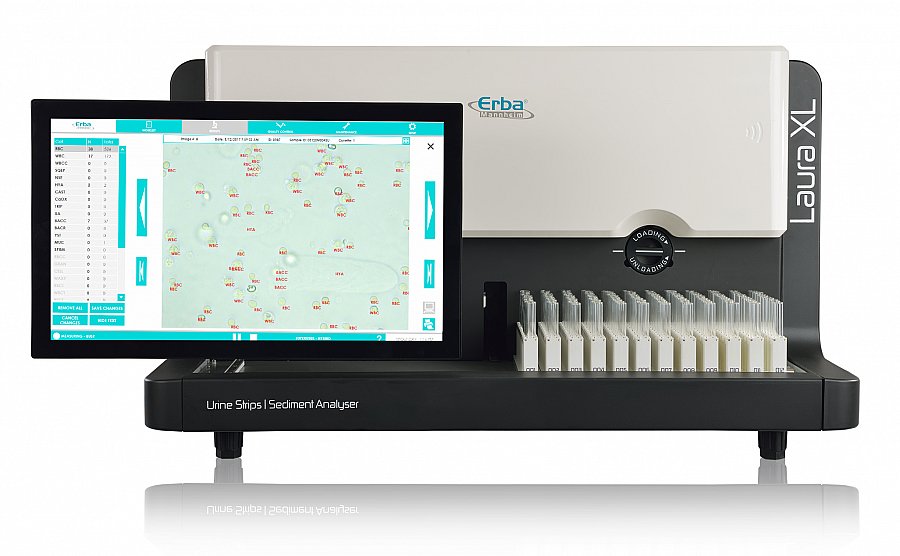

Urine analyser LAURA XL
Last update: 06.09.2026, 23:31:50
The LAURA XL analyser is designed for in vitro semi-quantitative urine analysis using PHAN® Auto diagnostic test strips and for urine sediment assessment by automated microscopy.

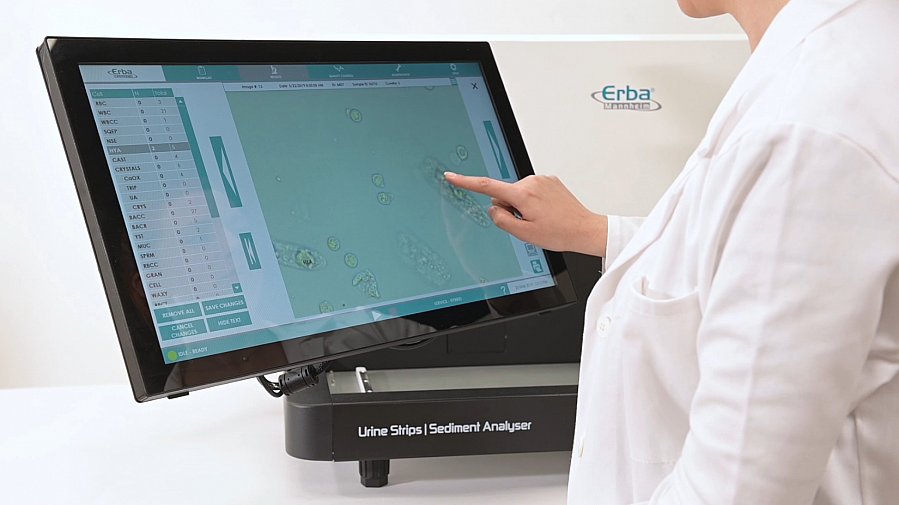

Result evaluation is based on image analysis of colour changes in individual diagnostic test strip pads and on the analysis of urine sediment particles using pre-programmed classifiers and neural networks. Full automation is ensured by an intuitive transport system, automatic urine sample homogenisation and dispensing, sample processing and evaluation, and optional storage or transfer of results to the LIS. Operation of the LAURA XL analyser is facilitated by a user-friendly LCD screen with an intuitive user interface.
TECHNICAL SPECIFICATIONS
- Three operating modes
- Throughput: 125 tests per hour (biochemistry + sediment)
- Measurement principles: automated microscopy and image analysis

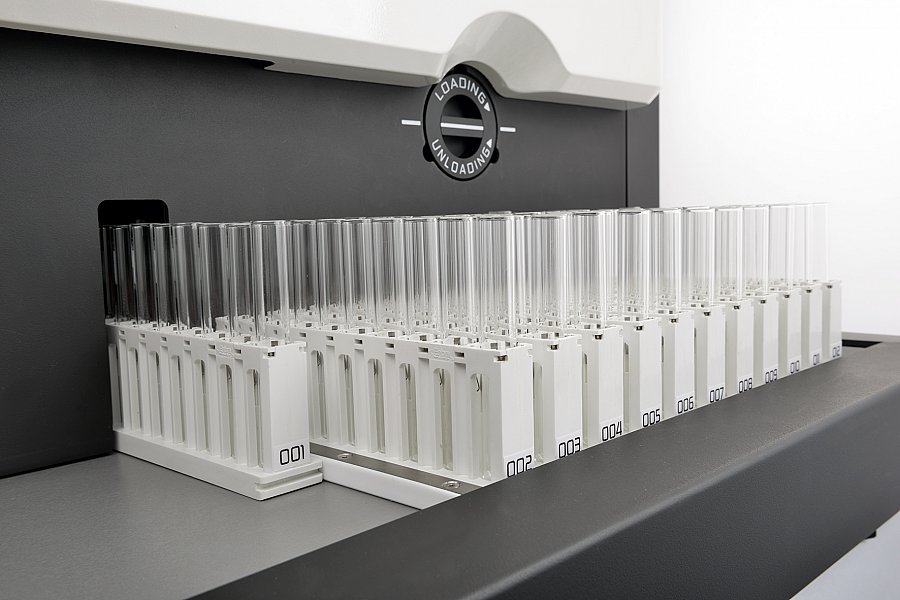

- Accepted tubes: Ø 11–16 mm, height 70–110 mm, or 1.5 ml microtubes with dedicated adapters
- Control: integrated PC with Windows 10 operating system
- Data export: USB, LIS, LAN, printing
- 10 or 11 chemical analysis parameters, depending on the selected test strip
- Automatic identification of 24 categories of urine sediment particles; additional pre-set categories can be marked manually
- Power supply: 100–240 V, 50–60 Hz
- Operating conditions: temperature 16–30 °C; relative humidity max. 85%
- Weight: 70 kg
- Dimensions without LCD: 943 × 675 × 563 mm
- Overall dimensions: 1,780 × 675 × 563 mm
CONSUMABLES
- PHAN® Auto urine test strips for semi-quantitative analysis
- URINORM XL control urine
- Opti-Sol 1500 cleaning solution
- Opti-Sol 750 rinsing solution
