LisaScan EM

Last update: 07.05.2021, 10:09:15

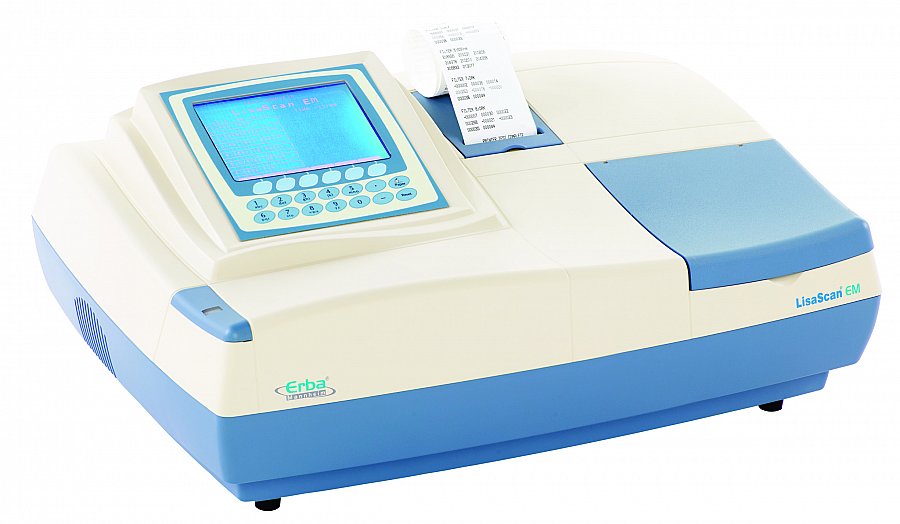

Automated ELISA microplate reader

The LisaScan EM offers objective and standard reading of ELISA microplates with interpretation.

Product Features:
  • Memory for 100 programs
  • Quantitative, qualitative or semi-quantitative determination
  • Continuous and kinetic measure point
  • Several modes of measurement
  • 8 channel reading
  • Open system
  • Product Applications:
All ELISA 96-well microplates
  • Optical system: 8 channel fiber optics to measure 8 vertical channels
  • Light source: Tungsten halogen lamp (13,8V / 50W)
  • Detector: Si photodiode
  • Filters: standard equipped 405, 450, 492, 630 nm + optional 578, 700 nm
  • Photometric resolution: 0,001 Abs
  • Measurement scale: 0 ~ 3 Abs
  • Accuracy: < 1% at 2.5 OD
  • Operating conditions: 20-40°C
  • Continuous mode: 8s / one wavelength 96 well plate
  • Kinetic mode: 17s / one wavelength 96 well plate
  • Size: 502 x 369 x 216 mm
  • Weight: 7 kg
