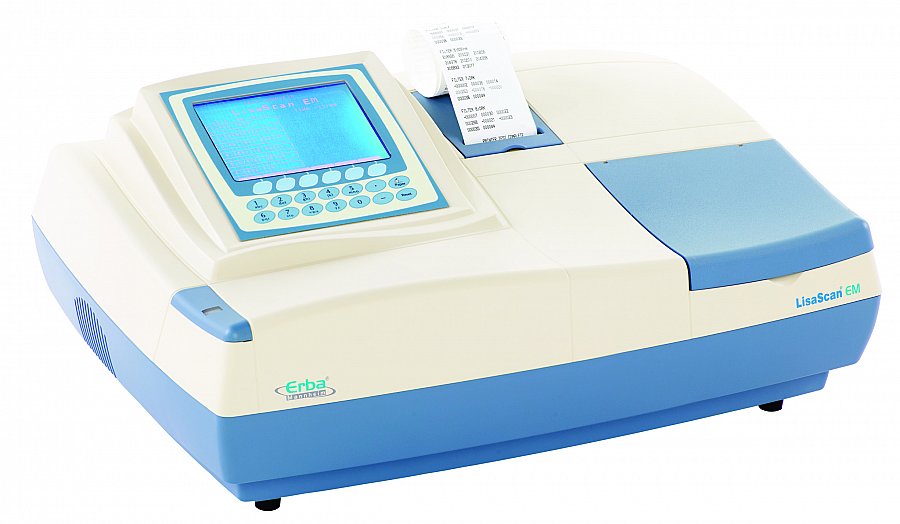

LisaScan EM
Last update: 07.05.2021, 10:09:15
Automated ELISA microplate reader
The LisaScan EM offers objective and standard reading of ELISA microplates with interpretation.
Product Features:
- Memory for 100 programs
- Quantitative, qualitative or semi-quantitative determination
- Continuous and kinetic measure point
- Several modes of measurement
- 8 channel reading
- Open system
- Product Applications:
All ELISA 96-well microplates
- Optical system: 8 channel fiber optics to measure 8 vertical channels
- Light source: Tungsten halogen lamp (13,8V / 50W)
- Detector: Si photodiode
- Filters: standard equipped 405, 450, 492, 630 nm + optional 578, 700 nm
- Photometric resolution: 0,001 Abs
- Measurement scale: 0 ~ 3 Abs
- Accuracy: < 1% at 2.5 OD
- Operating conditions: 20-40°C
- Continuous mode: 8s / one wavelength 96 well plate
- Kinetic mode: 17s / one wavelength 96 well plate
- Size: 502 x 369 x 216 mm
- Weight: 7 kg
