EC 90

Last update: 12.10.2022, 11:13:23
INNOVATIVE. PRECISE. AFFORDABLE.
These three words are the core theme of our next generation electrolyte analyser design process. We understand that any new system must be economical to run and reliable to use as much as possible. By utilizing the innovative solid ISEs technology and using high quality components, we have made an analyser that is a great fit for laboratories everywhere.

EVERYTHING YOU NEED. JUST 1 CLICK AWAY.
The best things don’t need to be difficult to understand or to use. On the opposite - the best technology has to be easy to use, with only small learning curve. With this in mind, EC 90 introduces 1-click Analysis. Everything you need is only 1 click away now. Inserting cartridge? Measuring sample? Printing results on built-in printer? Just 1 click and you are there.

INCREASED QUALITY
Trouble Free Operation - State-of the art technology using fully automated production methods. Integrated reference sensor, automatic calibrations and quality reports. High quality components for long life and result stability.

INCREASED PRODUCTIVITY
Simplified daily routine – maintenance free technology, advanced connectivity with one-click analysis. Plug and play
“all-in-one” consumable.

INNOVATIVE

Measuring Na, K, Cl and also iCa. Really small sample volume, super-fast analysis time together with low maintenace and excellent analytical performance. In all of these aspects, EC 90 shows why we call it “Next Generation Electrolyte Analyser”. Other benefits, like state of the art connectivity and data management are also standard.

PRECISE

Employing cutting edge technology, the New EC 90 ISE analyser takes laboratory electrolyte measurements to new heights. The linearity on all the parameters extends above clinically required levels and within-run precision is <1% CV.

AFFORDABLE

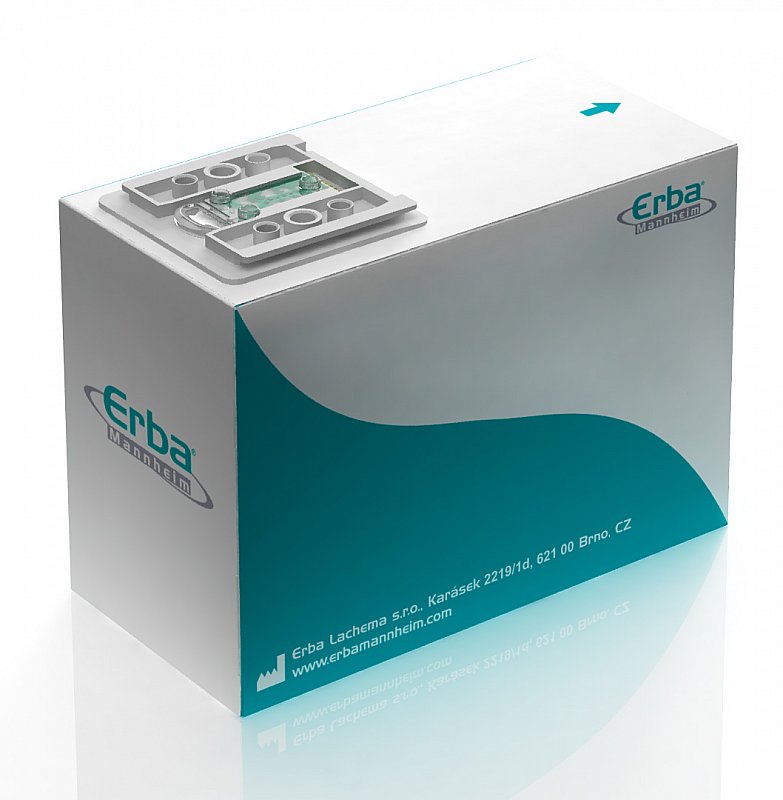

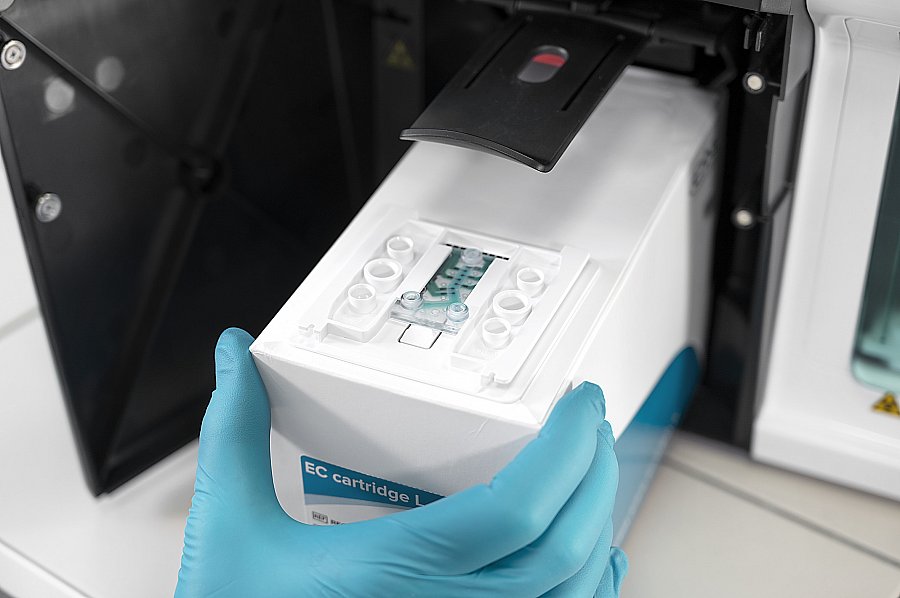

The cartridges maintain their sensitivity and first-class performance for 90 days from the day that they are docked into the analyser. The “all-in-one” cartridges cater for any laboratory size since the cartridges integrate the reagent pack with the biosensor and are available in three different kit sizes; small, medium and large, capable of performing 500, 1,000 and 3,000 sample measurements respectively.

SOFTWARE

Interacting with the EC 90 is made easy with large screen and clean software design. Sample results to QC records - everything is just tap away.

TECHNICAL SPECIFICATIONS

Touch Screen
8.5 inch colour touch screen

Display
600 x 800 pixel graphic display

Power
100-240 VAC 50/60 Hz  80 VA

Dimensions
337mm (D) x 273mm (W) x 422mm (H)

Weight
<8 kg

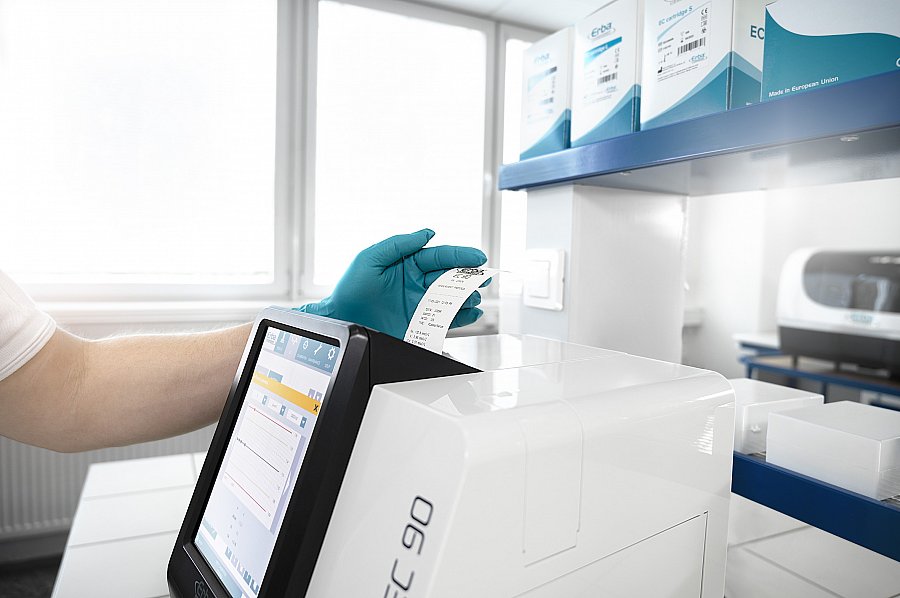

Printout
built-in, 24 column thermal printer

Operating Conditions
15-35ºC (59-95°F) / 15-90% humidity

Electronics
microprocessor controlled

Connectivity
2 x USB, RS 232, LAN

Optional Equipment

Auto Sampler
to be announced

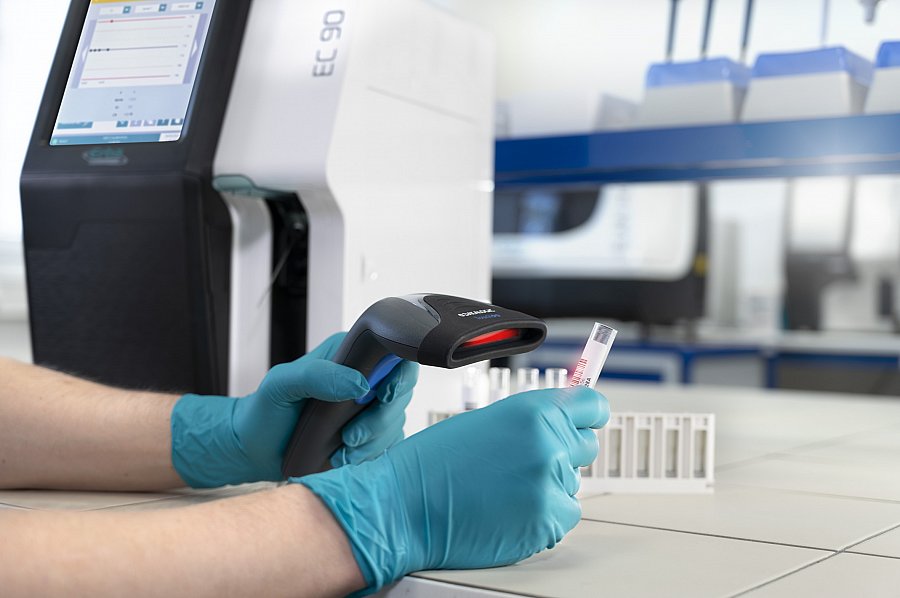

Barcode Scanner
Sample/Patient ID,
QC Materials Data

OPERATING PARAMETERS

Parameters
Na+, K+, Ca++, Cl-

Technology
Electrochemistry, thick film biosensor cartridge

Principle
direct measurement

Sample Type
whole blood, plasma, serum,
dil. urine, aqueous sol.

Sample Volume
35 and ≥70 μL measuring modes

Sample Temperature
15–35 °C

Throughput
100 samples/hour

Analysis Time
35 sec

Data Storage
10000 samples

Data Management
fully functional QC with Levey-Jennings and Westgard rules programmable reference ranges advanced flagging Bi-directional LIS

Language/s
English & others on demand

1-point calibration
automatic 1-point calibration
with every sample
or on-demand

2-point calibration
automatic 2-point calibration
every 12 hours
or on demand

Standby Mode
automatically controlled
or user defined
