Hematology analyzer ELite 5

Last update: 20.10.2015, 09:48:41

Advanced 5 Part Differential Hematology Analyzer






Benefits

  • Only 3 on-line reagents needed (Erba Dil-5P, Erba Lyse-5P, Erba Diff-5P), enviroment-friendly (cyanide free)
  • USB interface for support: Host computer, Keyboard, External printers, Upgrade control, Barcode reader (hand-held), SW, Data back-up, Hand-held barcode reader
  • Usage of standard electronic and mechanic components
  • Aperture made in technical ruby

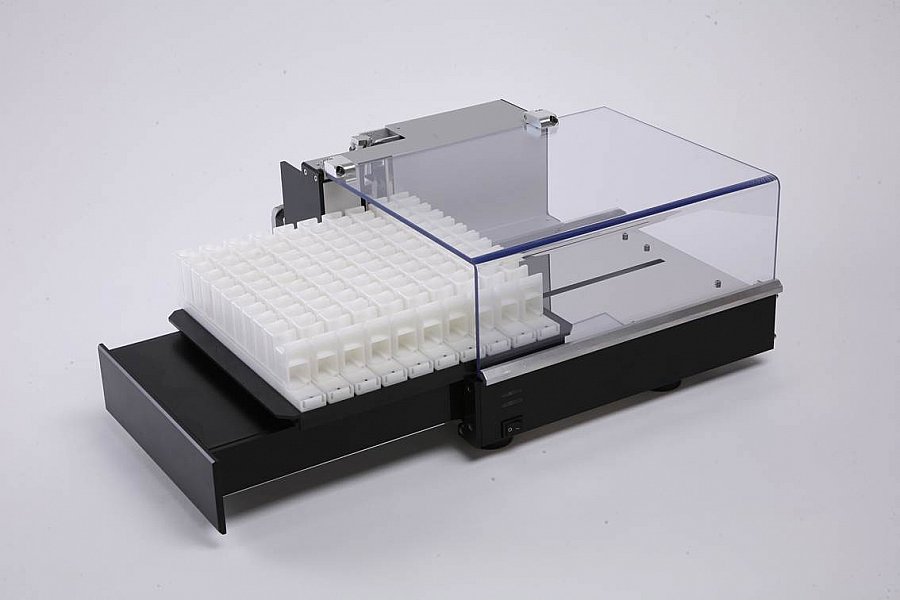

  • Autosampler with built-in Barcode reader and mixer (up to 100 sample tubes in 10 racks), built-in cap detector to determine presence of sample tube cap

Easy handling

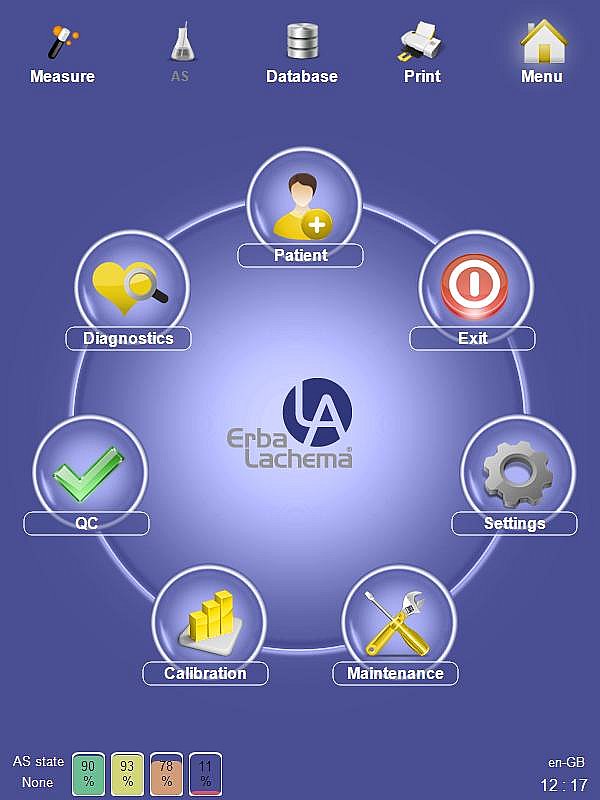

  • Full colour LCD touch-screen with high contrast ratio
  • Optional 8 languages (EN, FR, DE, CZ, PT, RU, ES, Indonesian)
  • User-friendly multilingual operating menu
  • Sample rotor, ensuring safe and easy sampling
  • Low-maintenance needed

Principles:

  • Electrical impedance method with advanced SRV technology
  • Diode based LASER Technology with hydro-dynamic focusing for 5 part differential
  • Photometry – LED based technology for measurement of hemoglobine

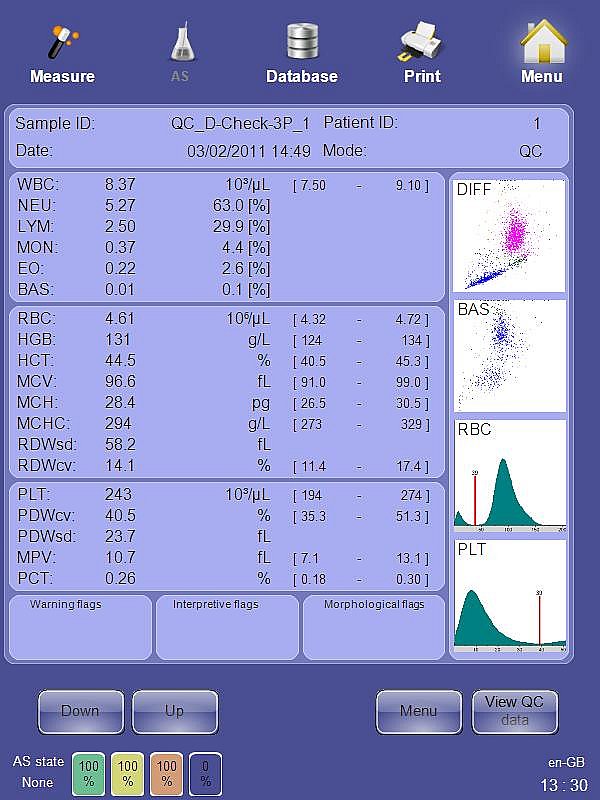

Parameters: 26 parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYM#, MON#, NEU#, EOS#, BAS#, LYM%, MON%, NEU%, EOS%, BAS%, RDW-SD, RDW-CV, PDW-SD, PDW-CV, MPV, PCT, P-LCC, P-LCR + 2 scatter-grams – WBC 5 part differential & WBC/Baso + 2 histograms – RBC & PLT

Throughput: 60 tests / hour
Sample volume: 110 µl of whole blood in open & closed mode, 25 µl in small sample mode (optional)
Chambers: Dual chamber advanced system for higher accuracy & precision
Reagent System: 3 Reagent System – Environment-friendly reagents

  • Erba Dil-5P
  • Erba Lyse-5P
  • Erba Diff-5P

Clean Modes:

  • High voltage pulses on aperture
  • Chemical cleaning of the aperture using Erba Hypoclean CC reagent
  • Back-flush using high-pressure

Choice of languages: English, French, German, Czech, Indonesian, Portuguese, Russian, Spanish
Data capacity: 100 000 results with all scatter-grams & histograms
Safety:

  • Sampling using advanced sample holder
  • Optional auto sampler (up to 100 samples in 10 racks)

Peripheral ports: USB interface (4) & PS/2

  • Support for host computer
  • Support for USB or PS/2 keyboard (optional)
  • Support for external printers (hp DeskJet, LaserJet)
  • Support for hand-held barcode reader (optional)

Data back-up method: USB mass storage device
Software upgrade method: Via USB port (using USB mass storage)
User interface & Display:

  • Full colour LCD touch-screen with high contrast ratio
  • Status LED

Dimensions (W x D x H): 410 mm x 465 mm x 515 mm
Net weight: 35 kg

Dimensions of autosampler (W x D x H): 190 mm x 380 mm x 322 mm
Weight of autosampler: 10 kg
