ECL 760

Last update: 06.12.2022, 08:19:48

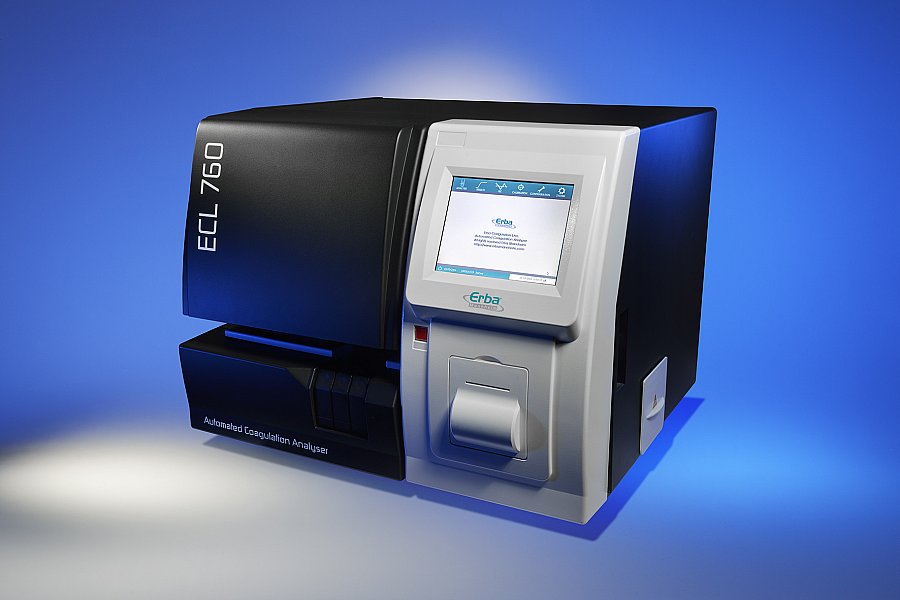

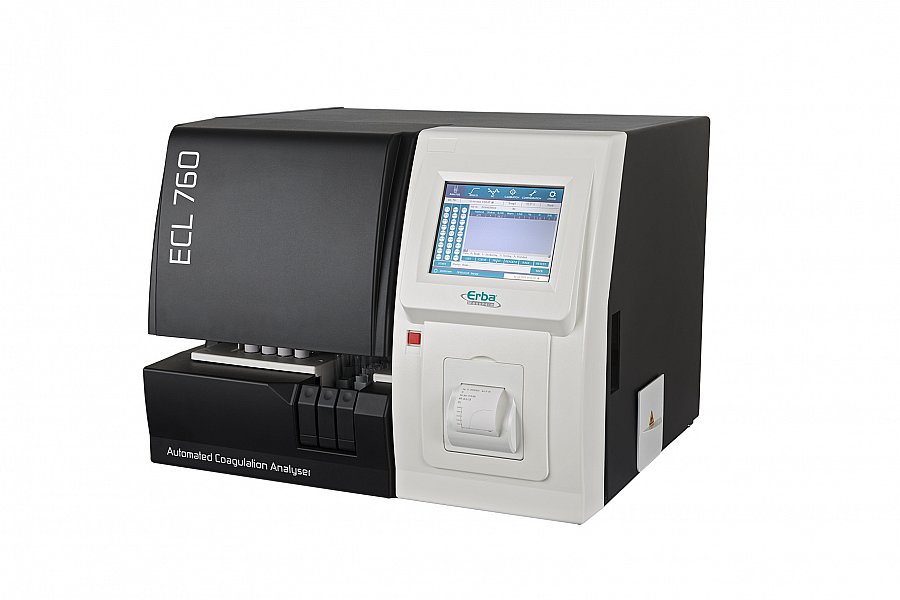

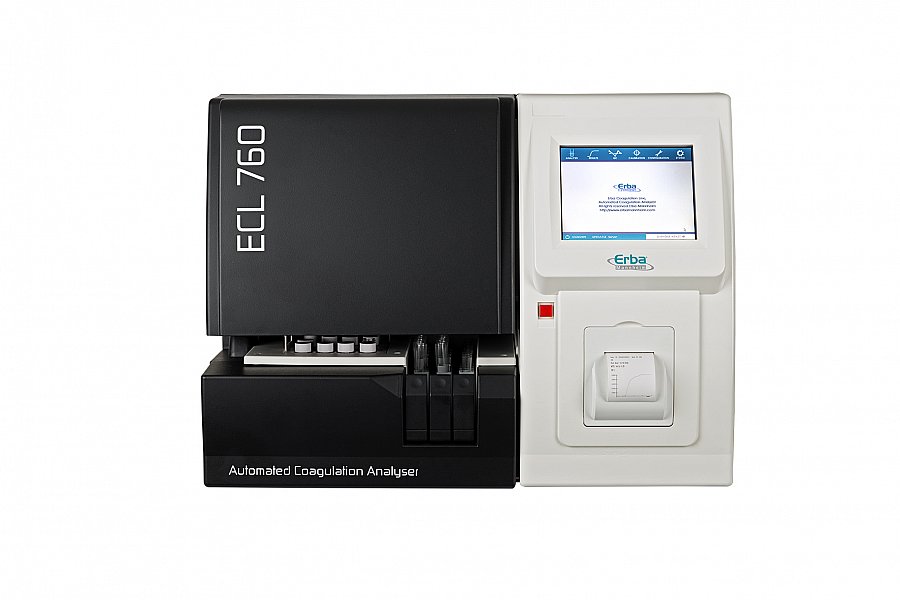

Fully Automated Coagulation Analyser
Advanced random access system for clotting, immunologic and chromogenic assays for routine and STAT testing.

  • Simple, desktop analyser
  • Bi-directional LIS communication
  • Barcode reader for sample identification
  • 60 PT tests / hour
  • Colour touch screen and the possibility to connect an external keyboard, a mouse and a printer
Functional characteristics:
  • 7 measuring channels
  • 8 incubation positions at 37°C +/- 0.2°C for reaction cuvettes

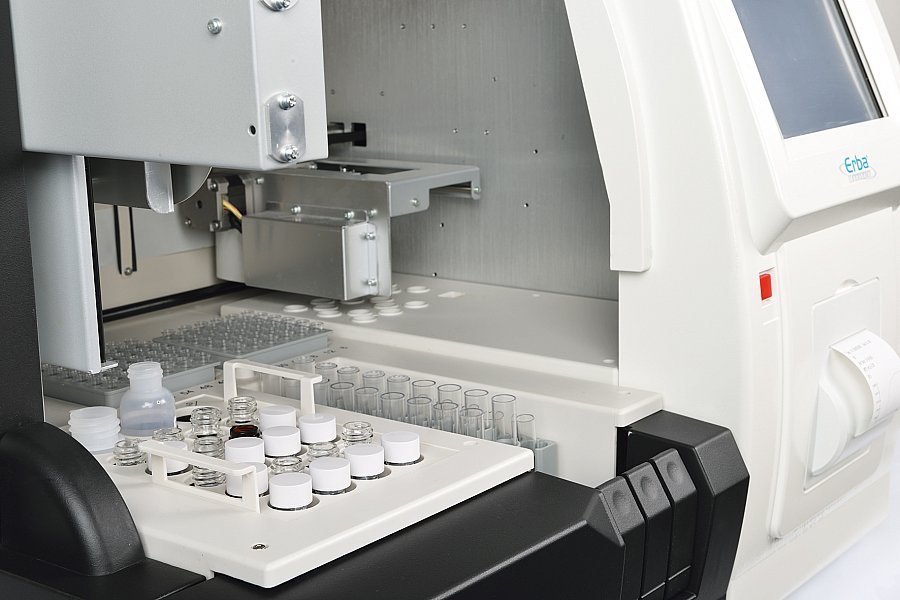

  • 23 refrigerated and stir able positions for reagents, diluents and cleaner
  • 27 positions for samples, primary tubes, vacuum system tubes and cups

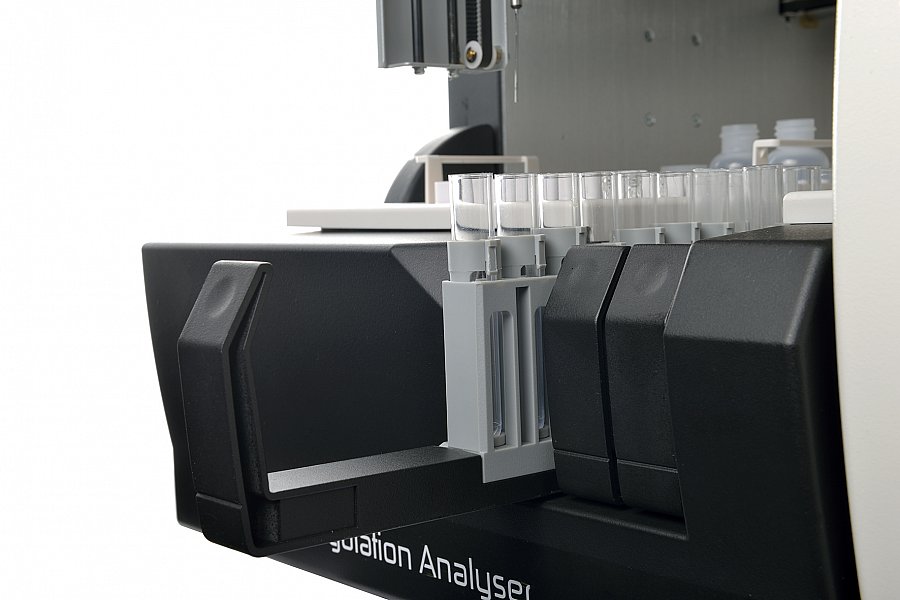

  • 72 positions for reaction cuvettes

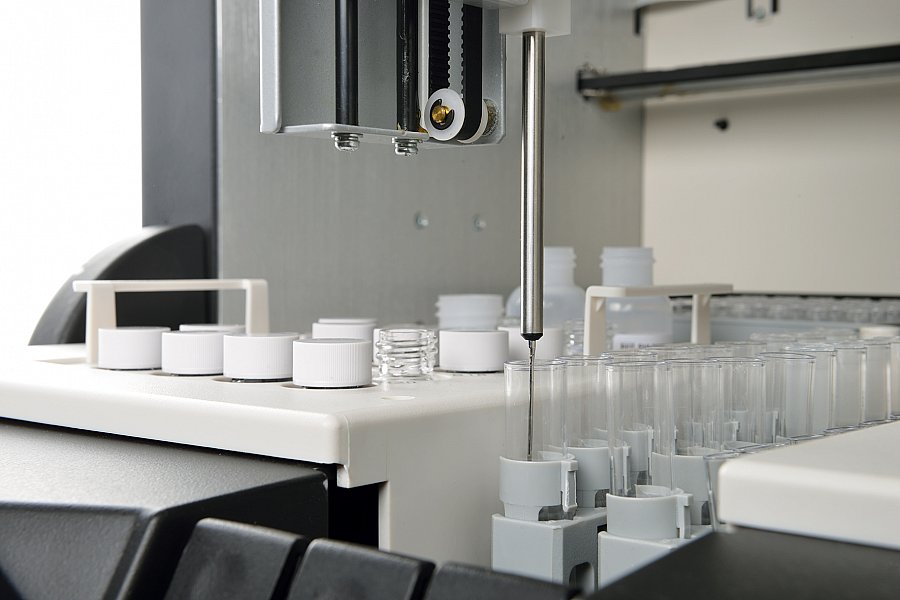

  • Pipetting needle with automatic preheating, collision protection, liquid level detection of and control of reagent volumes
  • Volume of reaction liquid: 150-300 µl, pipetting volume: 4-200 µl
  • Parameters: PT, APTT, TT, Fibrinogen, Coag. factors, D-Dimer, ATIII, Protein C,  Protein S, Lupus Anticoagulans
  • Built-in thermal printer
  • RFID for security of use
  • Quality Control: 12 QC user defined QC material
  • Calibration: Automatic, manual, 6 point calibrations
  • Storage capacity of more than 10 000 data curves
  • program with automatic Levey-Jennings graph monitors system performance
  • Comprehensive Erba Haemostasis reagent line
Technical parameters:
  • Universal power supply 100-240V~50/60Hz
  • dimensions: 650 x 580 x 510 mm
  • weight: 53 kg
  • 2 USB ports
